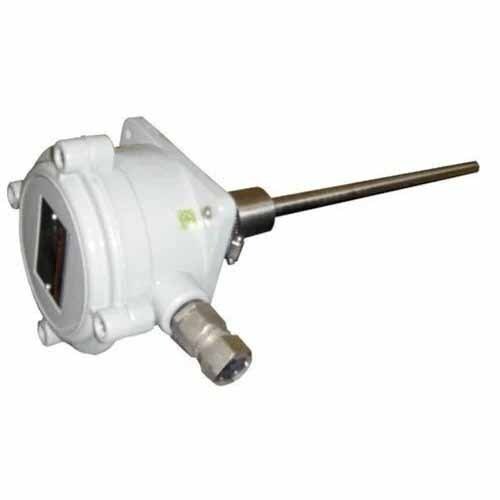

About Continuous Dust Monitoring Platform
The Online Dust Monitoring System is a compact and reliable solution for continuous particulate emission monitoring in stack applications. With an accuracy of +2%, it ensures precise dust measurement in industrial environments. Featuring a clear LCD display, the unit offers easy real-time data viewing. It supports both 20 mA analog output and RS-485 digital communication for seamless integration. Operating at 60 Hz, the system functions effectively in 45% RH humidity. Housed in a compact 115 x 65 x 55 mm enclosure, it's ideal for space-limited installations requiring consistent performance and compliance monitoring.
| Paint Type |
Emulsion |
| Finish |
High Gloss |
| Brand |
Asian Paints |
| Model Name/Number |
SME-209-PM |
| Accuracy |
+/- 2% |
| Analog Output |
20 mA |
| Digital Output |
Rs-485 |
| Dimensions |
115 X 65 X 55 mm |
| Display Type |
LCD Display |
| Frequency |
60 Hz |
| Usage/Application |
Stack Monitoring System |
| Humidity |
45% RH |
| Number Of Sensors |
1 |
| Operating Temperature |
0-400 Degree Celsius |
| Power Source |
230V AC |
| Protection Class |
IP-65 |
| Radio Frequency |
50 Hz - 60 Hz |
| Range |
0-1000 mg/Nm3 |
| Voltage |
230 V AC |
| Weight |
5 Kg |
| Model Name |
Dust Monitoring System |
| Country of Origin |
Made in India |
Reliable Online Stack MonitoringDesigned for continuous emission environments, the SME-209-PM Dust Monitoring System ensures uninterrupted PM10 surveillance in stack monitoring applications. Its IP-65 enclosure protects sensitive components even in demanding industrial conditions, facilitating compliance with environmental regulations and reducing downtime. The simple installation process and intuitive interface allow operations teams to easily incorporate this platform into existing systems.
High Precision and Broad Detection RangeEngineered with a triboelectric detection mechanism, this monitor delivers highly accurate real-time readings across an extensive range of 0-1000 mg/Nm3. It leverages a robust analog and digital output configuration to integrate seamlessly with control rooms and automated reporting systems, providing timely and comprehensive air quality data for informed decision-making.
FAQ's of Continuous Dust Monitoring Platform:
Q: How does the SME-209-PM Continuous Dust Monitoring Platform operate?
A: The SME-209-PM uses triboelectric detection principles to measure PM10 dust concentrations in real-time. It continuously monitors stack emissions and displays results on an LCD, while simultaneously sending data via analog (20 mA) and digital (RS-485) outputs.
Q: What are the key benefits of using this dust monitoring system?
A: This system offers high accuracy (2%), quick and reliable PM10 detection, easy installation, and robustness with its IP-65 protection class. It supports compliance with regulatory standards and helps optimize environmental control processes.
Q: Where is the SME-209-PM typically used?
A: The platform is primarily utilized in stack monitoring systems within industrial facilities, where continuous monitoring of particulate emissions is required to meet environmental guidelines and ensure workplace safety.
Q: When should this dust monitoring system be considered for installation?
A: This system is ideal when precise, continuous, and automated PM10 monitoring is needed, especially in industries where emission compliance and real-time reporting are mandatory.
Q: How is the data from the monitoring system accessed?
A: Operators can view live dust concentration values on the built-in LCD display and remotely access readings through 20 mA analog or RS-485 digital outputs for integration with data acquisition and control systems.
Q: What is the process for integrating the SME-209-PM into an existing stack monitoring application?
A: The installation involves mounting the unit near the emission source, connecting the power supply (230V AC), and interfacing the outputs to the facility's data collection or control infrastructure. The robust design ensures seamless operation once integrated.
Q: What makes the SME-209-PM ideal for exporters, manufacturers, and suppliers in India?
A: Made in India by Soarmlich Engineers, the system combines local manufacturing strength with international quality standards, offering reliable support, customization options, and efficient logistics for domestic and export markets.
