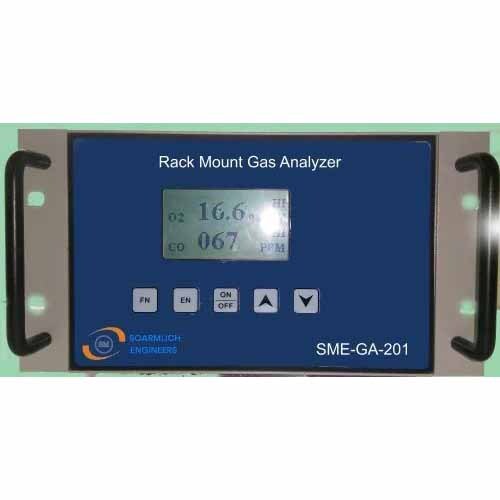

SME GA-201 Industrial Gas Analyzer About
| SPAN Calibration | Automatic Span Area |
| Sampling | Through Inbuilt Sampling Pump |
| Connection Hose | 2.0 meters, special lengths on demand (Probe Unit) |
| Interference Filters | Provided with Sensors |
| Working Temperature | -5 to 55 Degree Celsius |
| Storage Temperature | -20 to 50 Degree Celsius |
| Printer | 24 Columns |
| Printing Speed | 0.75 lines/seconds |
| Battery Life | 6 Hours Continuous Operation |
| Digital Interface | RS 232 |
| Probe Length | SS 600 mm |
| Zero Calibration | Automatic at instrument start up with fresh air sample |
| User Data | 2 lines of 16 characters |
| Data Memory | 500 readings for each gases |
| Alarms | Visual and audible, 4 Alarms |
| External Dimensions | 280 x 210 x 185 mm |
| Gross Weight | < 2 kg with batteries (approximately) |
| Line Filter | Replaceable 5 microns |
| Probe Diameter | 8mm (12mm optional) |
| Response Time | 30 Seconds at 95% variation. |
| Model Name/Number | SME-GA-201 |
| Brand | Soarmlich Engineers |
| Usage/Application | Industrial |
| Rated Voltage | 220V AC |
| Display Type | Graphics LCD |
Precise Multi-Gas Detection for Industrial SafetyThe SME GA-201 is engineered to monitor multiple gases, making it essential for maintaining workplace safety. Its automatic calibration and robust construction support seamless detection, while audible and visual alarms provide immediate alerts in case of dangerous gas levels. Industries benefit from its efficiency in detecting hazardous gases and ensuring regulatory compliance.
Portable and User-Friendly DesignThis analyzer's compact dimensions (280 x 210 x 185 mm) and lightweight design enable easy transport and setup. With a 6-hour battery and built-in sampling pump, it proves ideal for field use. The user interface displays essential data clearly on two lines of sixteen characters, while optional interface and probe upgrades offer enhanced flexibility.
Advanced Data and Connectivity FeaturesEquipped with a memory storage capacity of 500 readings for each gas, the SME GA-201 makes data retrieval and review simple. Fast printing (24 columns at 0.75 lines/second) and RS 232 connectivity streamline data management and reporting. Accurate, real-time measurements support informed decision-making on-site.
FAQ's of SME GA-201 Industrial Gas Analyzer:
Q: How does the SME GA-201 Industrial Gas Analyzer operate in different environments?
A: The SME GA-201 is designed for use in a range of temperatures, from -5C to 55C, making it suitable for various industrial conditions. Its robust stainless steel probe and replaceable line filter ensure durability and performance, even in demanding settings.
Q: What gases can the SME GA-201 detect and monitor?
A: This analyzer can detect multiple gases, with a specific mention of CO2, making it ideal for flue gas analysis and other industrial gas monitoring applications.
Q: When should I perform calibration on the SME GA-201?
A: The SME GA-201 features automatic zero calibration at each start-up with a fresh air sample, ensuring reliable accuracy every time the device is powered on before use.
Q: Where can I use this gas analyzer effectively?
A: Its portable design allows the SME GA-201 to be used across various industrial locations, particularly where flue gas needs to be monitored, such as manufacturing plants, power stations, and field sites.
Q: What is the process for sampling gas with the SME GA-201?
A: Gas sampling is achieved through the inbuilt sampling pump, which draws the sample through a 600mm stainless steel probe, so users get accurate, real-time data with minimal manual intervention.
Q: How do I benefit from the portable monitoring feature?
A: Portability, combined with a 6-hour battery life and fast response time, allows for rapid deployment across multiple sites. Visual and audible alarms enhance safety, while robust data storage aids in efficient record-keeping and compliance.
Q: What type of data storage and connectivity options does this analyzer offer?
A: The SME GA-201 stores up to 500 readings for each gas and features RS 232 interface for efficient data management and external device connectivity, alongside fast printing capabilities for on-site documentation.
